HYDRAULIC HOSE CRIMPING MACHINE P32NC
DESCRIPTION
P32NC hydraulic hose crimper is a table top model with compact structure. It is the ideal choice for large production for hydraulic hose assembly making. Crimping range is wide from 1/4 inch to 2.5 inch high pressure hose and up to 3 inch industrial hose.
ADVANTAGES
► More intelligent micro computer system, automatic crimping data storage
► Opening diameter can be settled manually
► Emergency stop to prevent user from harm
► Automatic system pressure hold function
TECHNICAL DATA
| Model | P32NC Hose Crimping Machine |
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 650 (T) |
| Hose Size | 1/4 - 2.5 (inch) |
| Max. Opening | 31 (mm) |
| Die Sets | 13 |
| Die Set Type | P32 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | UC |
| Standard Voltage | 220 (V) Single Phase |
| Motor Power | 3.75 (KW) |
| Length | 650 (mm) |
| Width | 550 (mm) |
| Height | 1360 (mm) |
| Weight | 310 (KG) |
P32NC HOSE CRIMPER DIE SETS
| Die No. | Crimping Range | Length |
| 6 * | 6 - 8 mm | 55mm |
| 8 * | 8 - 10mm | 55mm |
| 10 * | 10 - 12mm | 55mm |
| 12 * | 12 - 14mm | 55mm |
| 14 | 14 - 16mm | 55mm |
| 16 | 16 - 19mm | 55mm |
| 19 | 19 - 22mm | 55mm |
| 22 | 22 - 26mm | 70mm |
| 26 | 26 - 30mm | 70mm |
| 30 | 30 - 34mm | 70mm |
| 34 | 34 - 39mm | 75mm |
| 39 | 39 - 45mm | 75mm |
| 45 | 45 - 51mm | 90mm |
| 51 | 51 - 57mm | 90mm |
| 57 | 57 - 63mm | 100mm |
| 63 | 63 - 69mm | 110mm |
| 69 | 69 - 74mm | 110mm |
| 74 * | 74 - 78mm | 110mm |
| 78 * | 78 - 87mm | 110mm |
NOTE
• " * " for non standard die sets
• Customized die sets are available
• Special voltage 110V, 208V, 240V, 415V are availbale
DETAILED SPARES

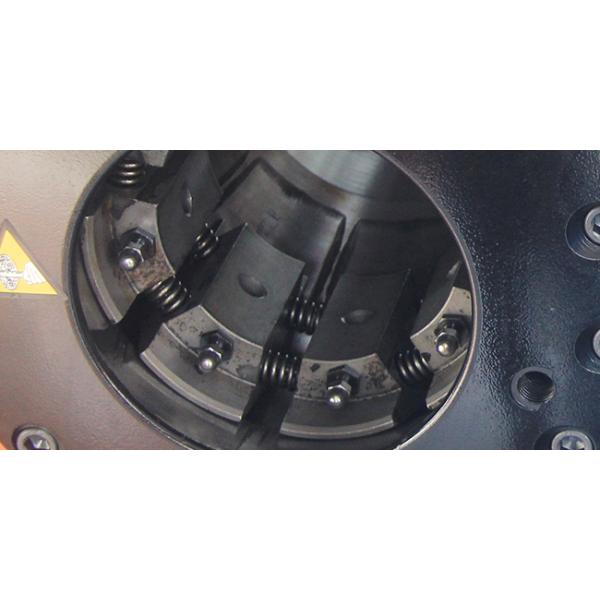

► High quality 40Cr material hydraulic cylinder, double conical design

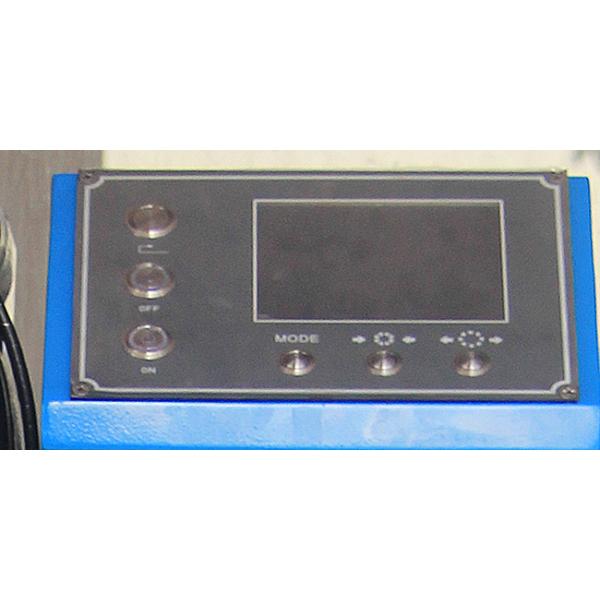

► Famous CNC micro computer system, high sensitivity

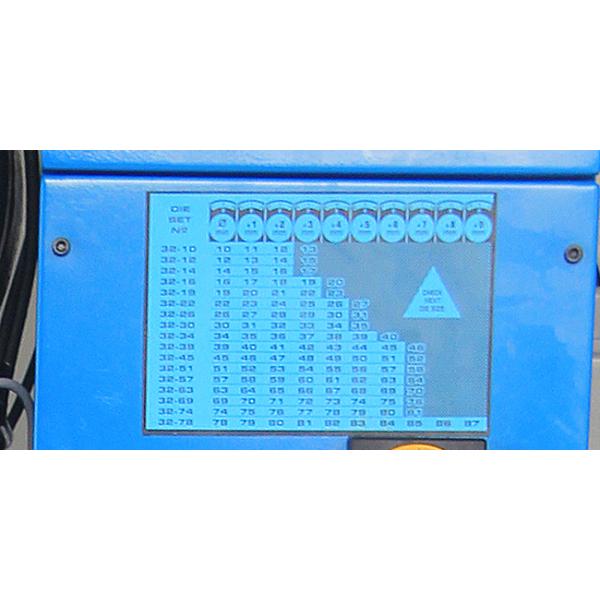

► Die sets choosing reference sheet for new users' convenient
► World famous brand hydraulic valve system, high stability low maintenance cost
CRIMPING SAMPLES
Hydraulic hose assembly used in all kinds of hydraulic systems, like excavator, loader, cylinder
