Finn Power Swage High Pressure Hydraulic Hose Crimping Machine 2 Inch Hose Press

  • 1
  • 2
  • 3

Brand Name : MENSION

Model Number : MS-51KH

Certification : CE RoHS

Place of Origin : CN

MOQ : 1 Set

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 1000 Sets Per Month

Delivery Time : 2 - 7 Working Days

Packaging Details : One Plywood For One Set

Price : Contact Us

Crimping Range : 14 - 87mm

Hose Size : 1/4 - 2inch

Die Sets : 10

Color : Blue

Max. Opening : 30mm

Crimping Force : 500T

System Pressure : 31.5Mpa

Power : 3KW

Size : 670*430*1520mm

Weight : 310Kg

Contact Now

Finn Power Swage High Pressure Hydraulic Hose Crimping Machine 2 Inch Hose Press

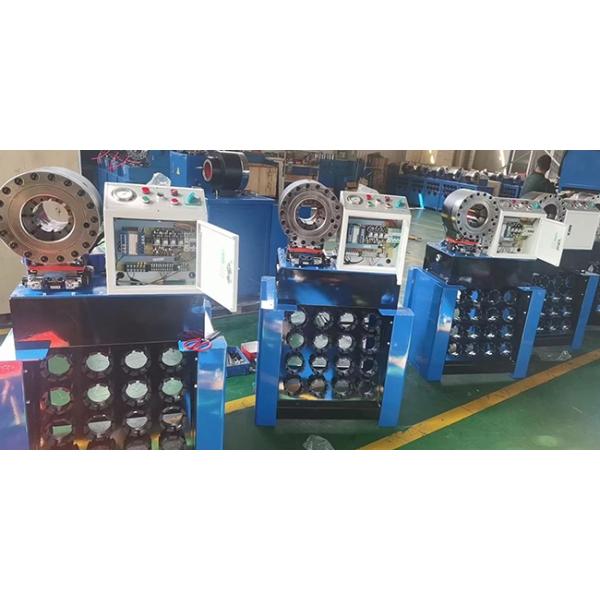

HYDRAULIC HOSE CRIMPING MACHINE MS-51KH
The MS-51KH is an upgraded model based on the 51 series, offering the same crimping force with enhanced features. This model incorporates quick-change technology for die sets, allowing complete die set replacement in one operation rather than piece-by-piece changes.
KEY FEATURES
  • One-piece crimping cylinder with high hardness and stability
  • Two operating modes for easy alternation
  • Integrated working lamp for monitoring crimping status
  • Quick-change die sets to improve productivity
  • Oil level indicator for monitoring system oil quantity and quality
TECHNICAL SPECIFICATIONS
ModelMS-51KH Hose Crimper
Crimping Range14 - 87 (mm)
Crimping Force500 (T)
Hose Size1/4 - 2 (inch)
Max. Opening30 (mm)
Die Sets10
Die Set Type51
System Pressure31.5 (Mpa)
Accuracy0.05 (mm)
ControlMS
Standard Voltage220 (V) / 380 (V)
Motor Power3 (KW)
Length670 (mm)
Width430 (mm)
Height1520 (mm)
Weight310 (KG) without oil
Finn Power Swage High Pressure Hydraulic Hose Crimping Machine 2 Inch Hose Press
51 CRIMPER DIE SETS
Die No.Crimping (mm)Length (mm)
6*6.0 - 8.035
8*8.0 - 10.035
10*10.0 - 12.035
12*12.0 - 15.035
1515.0 - 19.060
1919.0 - 23.060
2323.0 - 26.060
2626.0 - 31.060
3131.0 - 36.070
3636.0 - 41.070
4141.0 - 47.070
4747.0 - 55.080
5555.0 - 63.080
6363.0 - 69.080
69*69.0 - 76.090
• "*" indicates non-standard die sets
• Customized die sets are available
• Special voltages 110V, 208V, 240V, 415V are available
DETAILED FEATURES
10-16 Die Sets
Die sets feature hardness of 59-63HRC with a 0.02mm surface layer, ensuring long service life and high stability.
Finn Power Swage High Pressure Hydraulic Hose Crimping Machine 2 Inch Hose Press
Pressure Gauge for System Monitoring
Real-time pressure display enables precise pressure crimping operations.
Finn Power Swage High Pressure Hydraulic Hose Crimping Machine 2 Inch Hose Press
Foot Pedal Switch
Standard foot pedal operation frees both hands, making even large-size crimping tasks manageable.
Finn Power Swage High Pressure Hydraulic Hose Crimping Machine 2 Inch Hose Press
OEM Customization Services
Custom color options and specialized die sets with customized shapes, sizes, and lengths available upon request.
Finn Power Swage High Pressure Hydraulic Hose Crimping Machine 2 Inch Hose Press
APPLICATIONS
Finn Power Swage High Pressure Hydraulic Hose Crimping Machine 2 Inch Hose Press Finn Power Swage High Pressure Hydraulic Hose Crimping Machine 2 Inch Hose Press
This crimping machine is ideal for excavator repair services, hydraulic hose assembly, oil hose fabrication, high-pressure and low-pressure hose production, industrial pipes, and stainless steel tube applications.
