Manual Hose Crimping Machine Hydraulic Hose Fittings Crimping Machine Air Hose Crimper

  • 1
  • 2
  • 3

Brand Name : MENSION

Model Number : MS-E150

Certification : CE RoHS

Place of Origin : CN

MOQ : 1 Set

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 1000 Sets Per Month

Delivery Time : 2 - 7 Working Days

Packaging Details : One Plywood For One Set

Price : Contact Us

Crimping Range : 14 - 127mm

Hose Size : 1/4 - 3inch

Die Sets : 15

Max. Opening : 35mm

Color : Blue

Crimping Force : 780T

Voltage : 220V

Power : 3KW

Size : 650*550*650mm

Weight : 250Kg

Contact Now

Manual Hose Crimping Machine - MS-E150
Product Overview
The MS-E150 is a compact hydraulic hose crimping machine designed for high-pressure hose assembly production. With a maximum crimping force of 7800KN, it's ideal for machine shops, repair workshops, and single-piece production environments.
Key Features
  • Forged one-piece crimping head prevents oil leakage
  • Compact structure with lightweight design
  • Two bevel master die with substantial crimping force
  • High hardness molds for extended service life
Technical Specifications
Model MS-E150 Manual Crimping Machine
Crimping Range 14 - 127 mm
Crimping Force 780 T
Hose Size 1/4 - 3 inch
Max. Opening 35 mm
Die Sets 15
Die Set Type 150
System Pressure 31.5 Mpa
Accuracy 0.01 mm
Standard Voltage 220V / 380V
Motor Power 3 KW
Dimensions (L×W×H) 650 × 550 × 650 mm
Weight 250 KG
Manual Hose Crimping Machine Hydraulic Hose Fittings Crimping Machine Air Hose Crimper
150 Crimper Machine Die Sets
Die No. Crimping Range Length
6* 6 - 8mm 55
8* 8 - 10mm 55
10* 10 - 12mm 55
12* 12 - 14mm 55
14 14 - 16mm 55
16 16 - 19mm 55
19 19 - 22mm 55
22 22 - 26mm 70
26 26 - 30mm 70
30 30 - 34mm 70
34 34 - 39mm 75
39 39 - 45mm 75
45 45 - 51mm 90
51 51 - 57mm 90
57 57 - 63mm 100
63 63 - 69mm 110
69 69 - 74mm 110
74 74 - 78mm 110
78 78 - 87mm 110
Additional Options & Notes
  • Customized die sets available in different sizes and shapes
  • Special voltage options: 110V, 208V, 240V, 415V
  • Foot pedal accessory available for hands-free operation
  • * denotes non-standard die sets
Premium Components
Hydraulic Cylinder with Chrome40 - One-piece forged design prevents oil leakage and reduces maintenance costs
Manual Hose Crimping Machine Hydraulic Hose Fittings Crimping Machine Air Hose Crimper

Optimized Valve System - Minimizes oil transfer time for faster crimping and opening cycles, improving productivity
Manual Hose Crimping Machine Hydraulic Hose Fittings Crimping Machine Air Hose Crimper

High-Quality Die Sets - 15 die sets with 59-63HRC hardness for extended service life
Manual Hose Crimping Machine Hydraulic Hose Fittings Crimping Machine Air Hose Crimper

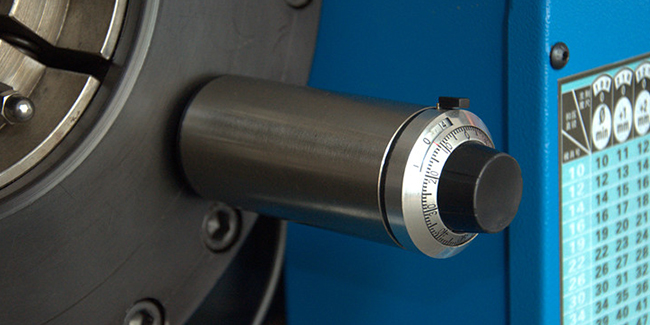

Precision Micrometer Control - 0.01mm accuracy for precise crimping diameter control without scale adjustments
Manual Hose Crimping Machine Hydraulic Hose Fittings Crimping Machine Air Hose Crimper
Applications
Manual Hose Crimping Machine Hydraulic Hose Fittings Crimping Machine Air Hose Crimper
